ENGEVAP Boiler model EV-1-2500

The ENGEVAP Boiler model EV-1-2500 is an advanced vertical water-tube solution, featuring a drum (SINGLE-DRUM - SD) and Pin-Hole grate, designed for power cogeneration applications. Its design increases the heat exchange area, ensuring better heat utilization and reliable operation, with high energy performance.

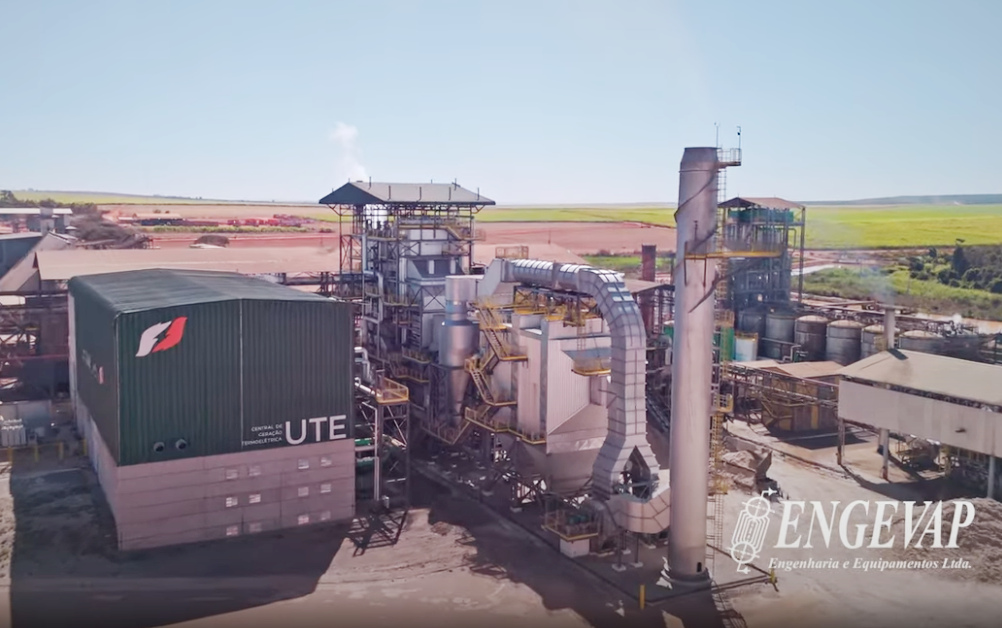

Operating since 2023, this boiler is installed at Lasa’s facility in Ipameri, Goiás, with a nominal capacity of up to 100 tons of steam per hour, pressure above 68 kgf/cm²(g), and a temperature of 525°C—ideal for processes requiring high-quality steam, combining robustness with thermal efficiency.

Using sugarcane bagasse with up to 52% moisture as fuel, the boiler delivers highly efficient energy conversion, harnessing the renewable potential of biomass with operational excellence.

In addition to its high thermal performance, the boiler features an advanced emission control system, composed of Cyclones, an Electrostatic Precipitator, and a chimney with exhaust fans sized for maximum efficiency.

This system ensures effective particulate retention before discharge (< 100 mg/Nm³), and also includes dry ash cleaning technology, which guarantees high efficiency in solid waste removal without water consumption.

The result is a clean and controlled process that significantly reduces particulate matter and greenhouse gas emissions, easily complying with environmental regulations and reinforcing ENGEVAP’s commitment to sustainability, regulatory compliance, and environmental preservation.

With safe operation, simplified maintenance, low cost, and excellent durability, the ENGEVAP Boiler is the ideal choice for industrial processes requiring high performance, energy efficiency, and sustainability.

Choose ENGEVAP: National technology at the service of productivity, the environment, and the best results for your industry.

Check on the presentation video.
